Cantilever Racking - 5 Bays - Double Sided - 4.5m / 1000mm Bay Width - 15,840kg capacity

$5,207.99
RRP $6,250.00
SAVE $1,042.01 (17%)
Sold Out


Calculate Shipping

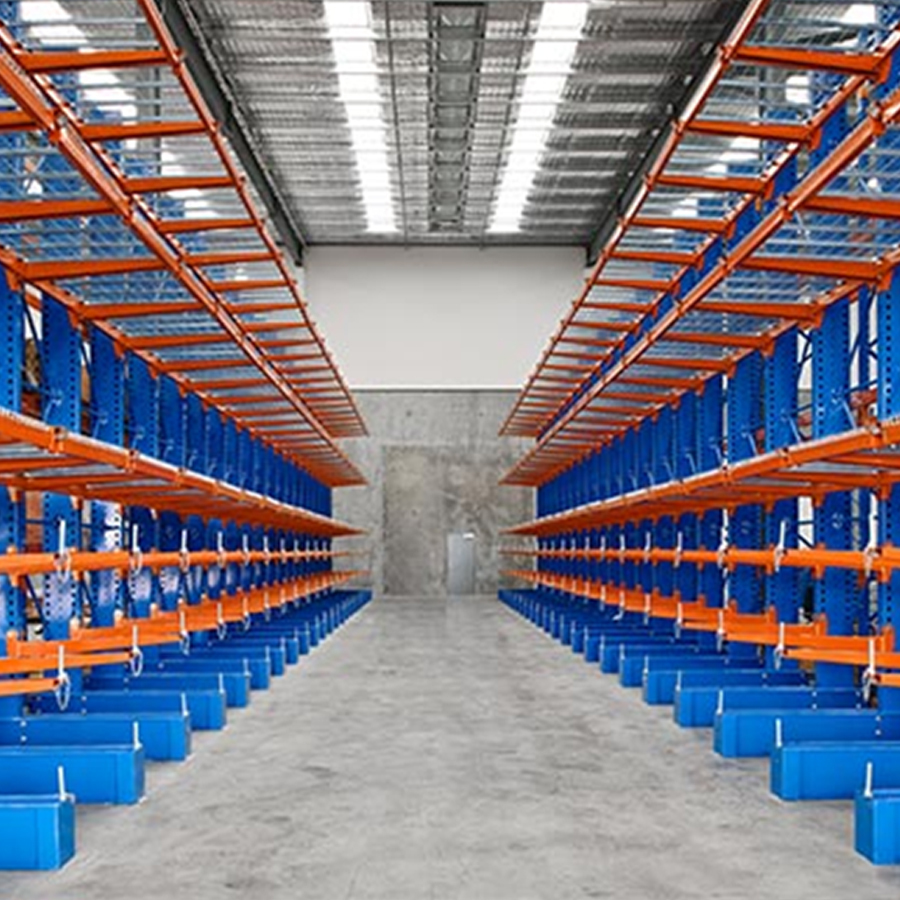

Cantilever Racking is the most effective solution for storing irregular awkward or long items such as timber, pipe, steel bars, tubes, plasterboard, furniture, windows and doors etc. The arm locations can be easily adjusted to suit your specific requirements.
So no matter how long or short/ large or small your storage problems are, Cantilever Racking will provide you with the most efficient and practical solution.

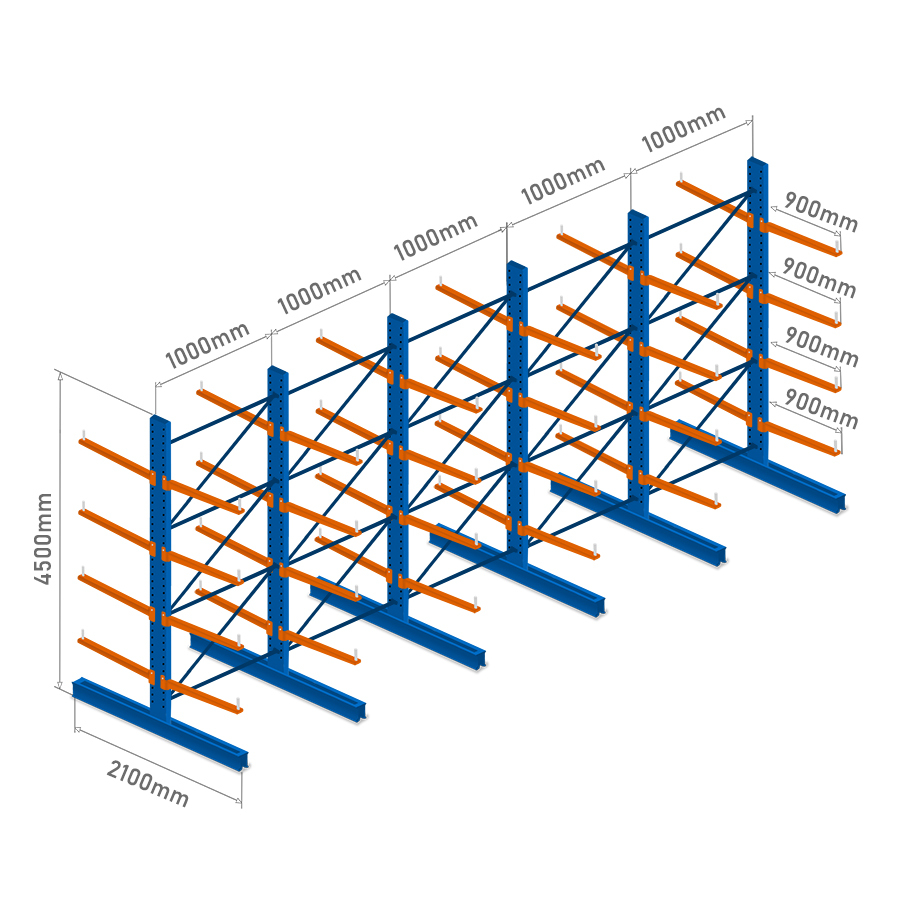

  • 5.12m Wide x 4.5m High
  • Heavy duty powder coated steel structure
  • Capacity of each 900mm Arm Level is 1,980kg UDL
  • Total capacity is 15,840kg over 8 arm levels and base
  • Pivoting arms to avoid structural damage while loading
Our Cantilever Racking incorporates
'Pivot Arm Technology'

1

If impact occurs, the pivoting arm swings upwards
protecting the arm & preventing structural damage
Sale Includes All of the Following:

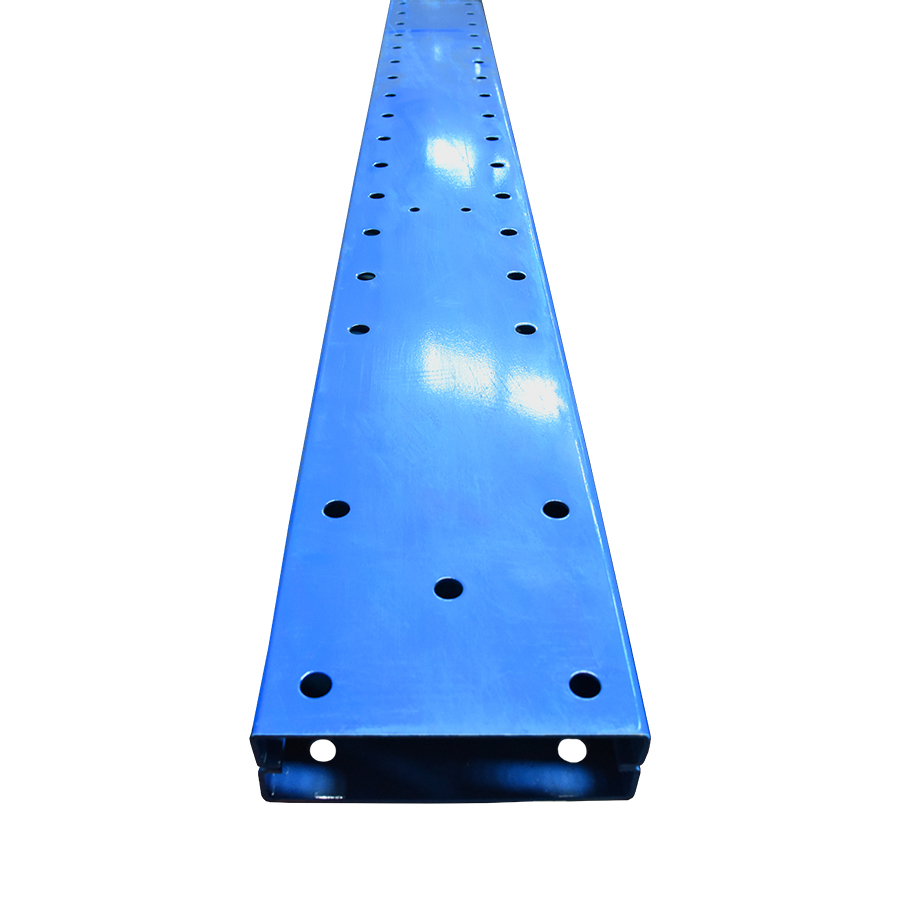

  • 6x UPRIGHT COLUMNS
    4500mm x 200mm x 60mm x 3mm | 3000kg Capacity each

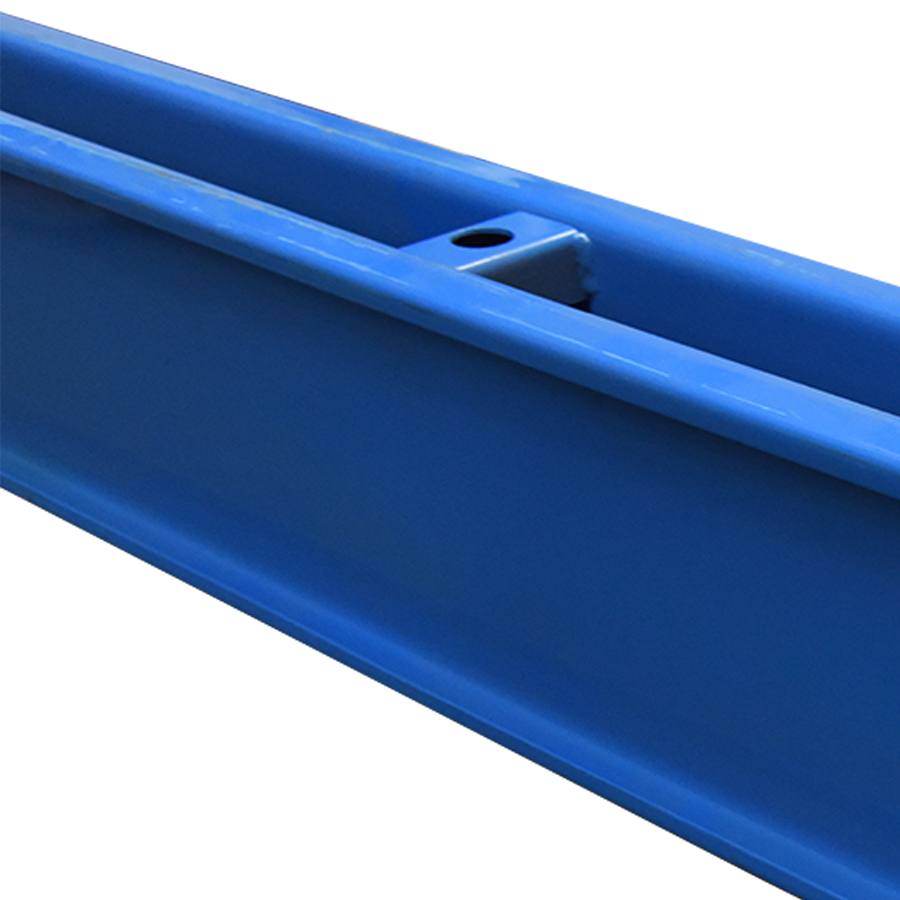

  • 6x DoubleBASES
    2100mm x 200mm x 120mm x 3mm

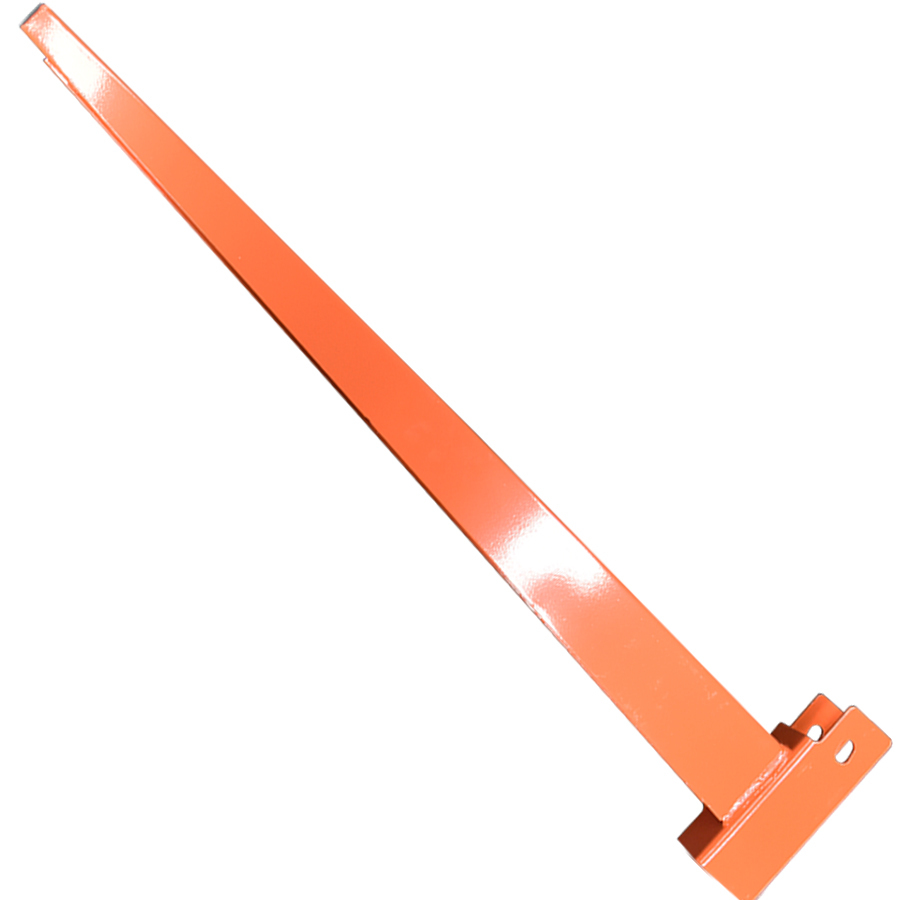

  • 48 x ARMS
    900mm | 330kg Capacity each
  • 20 x HORIZONTAL BRACES
  • 15 x DIAGONAL BRACES
  • 48 x ARM END STOPPERS
  • All Required Nuts & Bolts Including Dyna Bolts to fix to the floor
  • 1 x SAFE WORKING LOAD SIGN

(RAS-canti-st-5b-ds-4500)

SKU RAS-canti-st-5b-ds-4500
